What is CIELab

CIELab (also known as L*a*b* color space) is one of the most commonly used color spaces for measuring object colors and can be widely used in all fields. CIELab is a three-dimensional color space designed for high-precision color measurement, independent of device or lighting. Unlike RGB and CMYK, which rely on devices and light sources, CIELab enables consistent color representation by focusing on how humans perceive color.

It is one of the uniform color spaces and was developed by CIE in 1976 to overcome a major problem with the original Yxy color space, namely that equal distances on the x,y chromaticity diagram do not correspond to equal color differences that we perceive. It was developed as a perceptually uniform color space, meaning that similar color differences should appear the same across the model.

L*a*b* stand for?

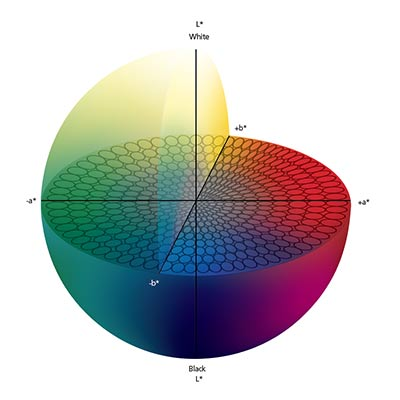

CIELab Color Space is structured around three axes:

· L * (Lightness): Represents the brightness of a color, ranging from 0 (black) to 100 (white).

· a *: Indicates the red-green axis, with positive values leaning toward red and negative values toward green.

· b *: Indicates the yellow-blue axis, with positive values toward yellow and negative values toward blue.

L* is the brightness, a' and b* are the chromaticity coordinates. a* and b* indicate the color direction: +a* is the red direction, -a* is the green direction, +b* is the yellow direction, and -b* is the blue direction. The center is the achromatic area; when the a* and b* values increase, the color point moves away from the center and the color saturation increases.

How CIE L*a*b* calculates color

CIE L*a*b* color calculation is based on the conversion of the tristimulus values of the color (CIEXYZ values). The specific steps are as follows:

1. Get CIEXYZ value

· To calculate the CIE L*a*b* value, you first need to obtain the CIEXYZ value of the color, which can be measured by a spectrophotometer.

· CIEXYZ values are typically measured relative to a reference illuminant (such as D65) and an observation angle (such as a 10 degree observer).

2. CIEXYZ to CIELab Conversion

· Assume that the three stimulus values of color are X, Y, Z, and the three stimulus values of reference white are Xn, Yn, Zn (It will be different under different light sources).

· The conversion formula is as follows:

(1) Calculate L* value (lightness)

(2) Calculate a* value (green-red axis)

(3) Calculate b* value (blue-yellow axis)

3. Definition of the intermediate function f(t)

4. Summarize the calculation results

· The resulting L*a*b* values can accurately represent the brightness, hue, and chromaticity of a color and are used for color difference measurement and color management.

In addition, it is simpler to use the online conversion tool to directly convert CIEXYZ values to CIELab values. Of course, there is an easier way, that is to use a spectrophotometer or colorimeter, which can automatically measure color and provide CIE L*a*b* values, eliminating the complicated manual calculation steps . This method is simple, fast and accurate .

Calculating ΔE in CIE Lab Color Space

ΔE (Delta E) quantifies the difference between two colors in CIELab space. The calculation of ΔE provides a measurable standard for color differences, which is particularly useful in quality control and color matching applications.

Types of ΔE Calculations :

· ΔE76 : The original formula; simple but not fully accurate for all applications.

Where L*, a*, and b* represent the lightness, green-red, and blue-yellow components of the two colors in the CIELab color space, respectively.

· ΔE94 : Adds perceptual non-uniformity adjustments, improving accuracy.

· ΔE00 : The most recent and accurate formula, considering multiple viewing conditions.

A ΔE value under 1 is generally considered indistinguishable to the human eye, while a ΔE of 2 or 3 is tolerable for most industrial applications.

Applications of CIELab

CIELab color space is widely used in color management and quality control because it conforms to the visual uniformity of the human eye and can accurately represent color differences. Its main applications include:

Printing and packaging: used for color matching and color difference detection to ensure the consistency of printed products and packaging.

Textiles and Apparel: Maintaining color consistency in dyeing and garment production.

Coatings and Paints: Helps with formulation adjustments to ensure accurate color for each batch.

Cosmetics: Used for color matching of products such as lipstick and foundation to ensure batch-to-batch consistency.

Food and Beverage: Inspect visual quality to ensure product appearance meets expectations.

Plastics and rubber: Used to control color quality and avoid batch color differences.

Automobiles and appliances: Ensure color consistency across the vehicle body, interior, and appliance housing.

Scientific research and experiments: Support color measurement research and color difference analysis.

Display Calibration: Used for screen calibration to make colors consistent across devices.

These applications have made CIELab an industrial color standard, improving product color consistency and quality.

How the CIE Lab Model Differs from Other Color Spaces

The CIE Lab (CIELab) color model differs from other color spaces like RGB, CMYK, and XYZ in the following key ways:

Perceptual Uniformity:

CIELab is designed to be perceptually uniform, meaning equal changes in values correspond to visually consistent changes in color. This aligns with human vision better than RGB or CMYK, where equal value changes can appear very different to the eye.

It allows for accurate color difference calculations (ΔE), making it ideal for industries requiring precise color matching and quality control.

Device Independence:

CIELab is device-independent, meaning it's not tied to any specific device like a monitor or printer. RGB and CMYK, however, are device-dependent, so colors may vary across different devices and require calibration.

This device independence enables CIELab to serve as a reliable reference for translating colors across various devices.

Three-Dimensional Structure (L*a*b*):

CIELab represents colors in three dimensions: L* for lightness, a* for green-red axis, and b* for blue-yellow axis. This approach separates lightness from chromaticity (color information), unlike RGB and CMYK, where luminance and chromaticity are entangled.

By isolating lightness, CIELab provides more flexibility and precision for color adjustments and transformations.

Color Space Range and Applications:

CIELab can represent a broader range of colors than CMYK and often includes colors outside of RGB's gamut. It's useful in fields requiring extensive color ranges, such as printing, textiles, and paint manufacturing.

Its uniformity and device independence make it valuable for industries needing consistent colors across various materials and lighting conditions.

Rooted in Human Vision:

Unlike RGB and CMYK, which are based on light emissions and pigment mixing, CIELab is based on the CIE's XYZ color space (a mathematically derived model that simulates human color perception).

This gives CIELab a strong foundation for modeling colors as the human eye sees them, making it ideal for applications focused on human-centered color reproduction.

In summary, CIELab's perceptual uniformity, device independence, and alignment with human vision make it particularly useful for precise color control, especially in industries where accurate color matching and consistency are essential.
