YT8300 is a standard split dual-use coating thickness gauge made by 3nh Company. It is a domestic coating thickness gauge with independent intellectual property right. It can quickly and accurately detect the coating thickness on metal substrate. YT8300 coating thickness measuring instrument fully conforms to ISO 2178, ISO 2360, GB/t 4956, GB/t 4957, ASTM B499 and other standards of magnetic method and Eddy current method testing principle.

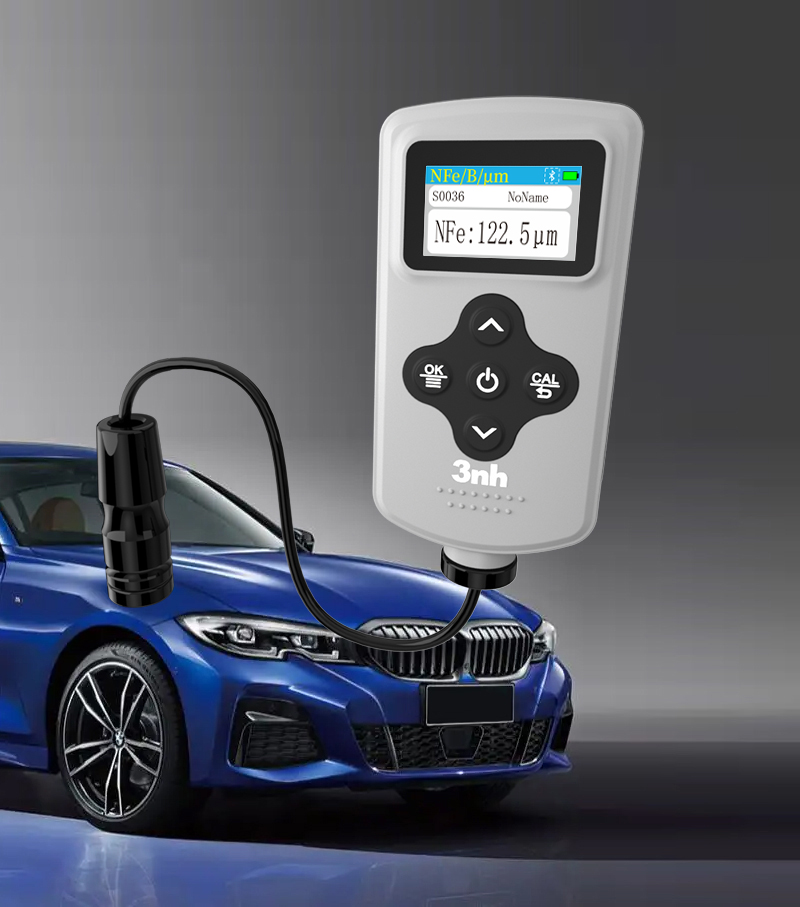

Professional version YT8300 split dual-use coating thickness gauge has the advantages of accurate measurement, large measuring range, multi-calibration mode, multi-measurement mode, convenient positioning and powerful function, widely used in manufacturing, metal processing, chemical industry and other surface engineering testing fields, coating surface treatment industry is the basic equipment.

The Fe-based probe can detect the thickness of non-magnetic coatings on various magnetic substrates (such as steel) , such as paint, powder, porcelain, chromium, copper, zinc, etc..

NFe based probes detect the thickness of all insulating coatings, such as paint, powder, porcelain, etc. , applied to non-magnetic metal substrates such as aluminum, copper, brass, stainless steel, etc. .



Characteristics of standard Version YT8300



1、Large range3000μm

Maximum measurement thickness 3000 μm

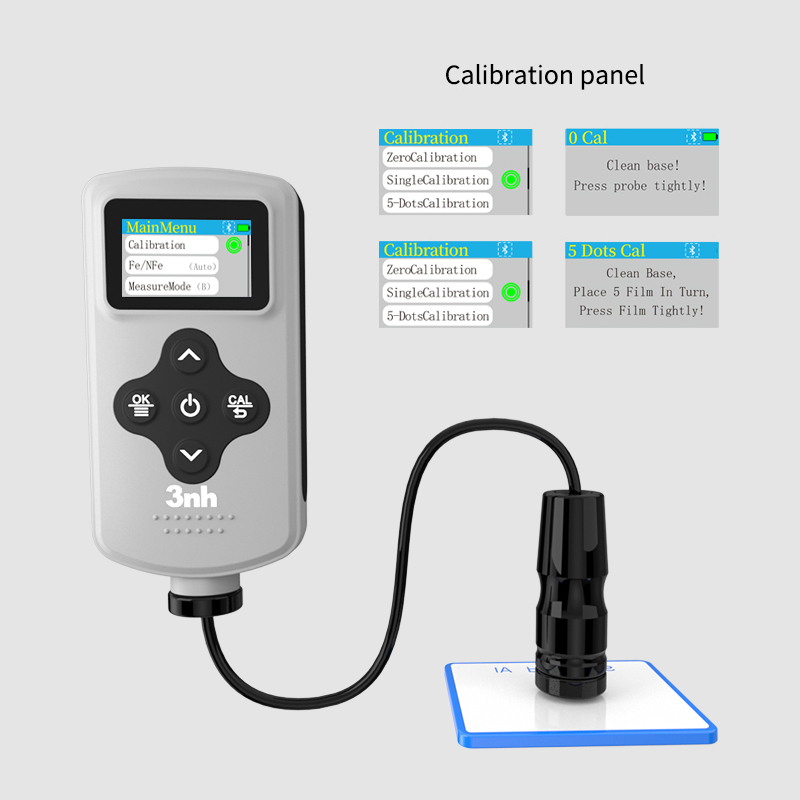

2、Support Zero Point, single point, five points

Support a variety of calibration methods, testing more convenient, to meet the needs of higher test accuracy

3、IPS pure color screen, smooth operation, large storage capacity

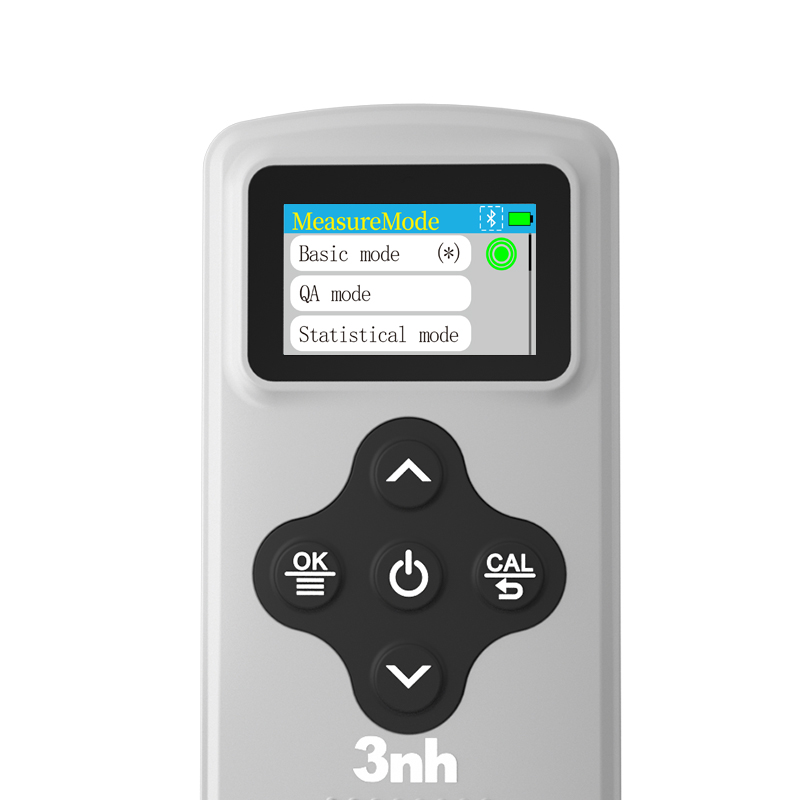

4、Measurement mode rich

Coating thickness tester YT8300 has basic mode, quality control mode, continuous mode, statistical mode for choice, to adapt to more test scenarios

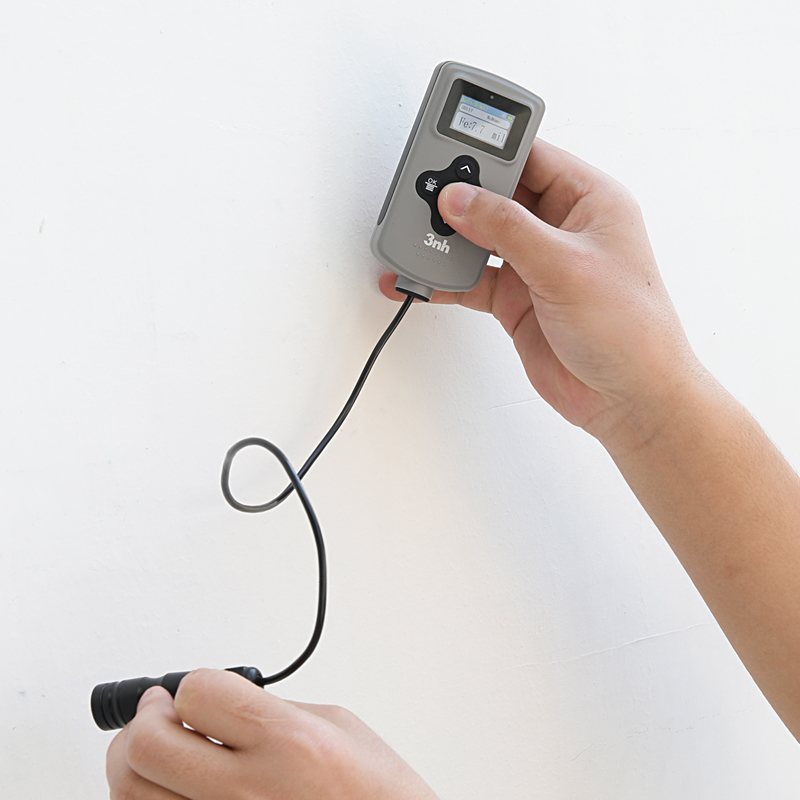

5、Non-destructive testing, automatic identification of substrate type coating thickness Tester

YT8300 can automatically identify magnetic, non-magnetic substrate, non-destructive testing does not harm samples, enhance the detection speed。

6、The radius of convex plane and concave plane

Precisely measured at 5mm and 10mm respectively

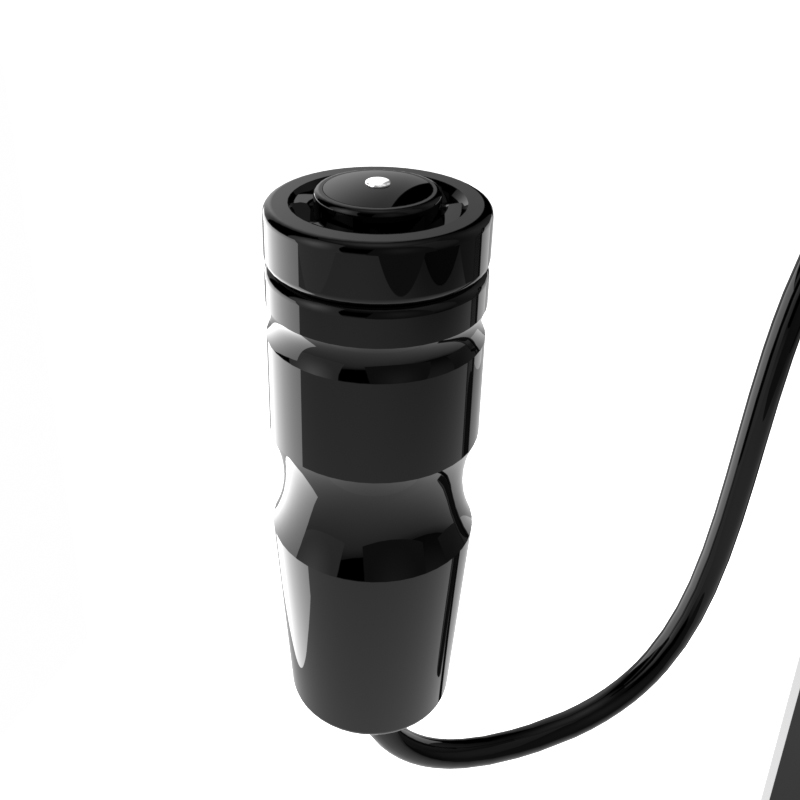

7、High sensitive probe

Independently developed high sensitive probe response speed, testing more accurate

8、Support Bluetooth, more mobile APP extensions

Can be instant through Bluetooth measurement data transfer to the hands of the APP, the corresponding data editing and processing, output test report





Technical parameters of Standard Edition YT8300 split dual-use coating thickness gauge



Model	YT8300
Product Name	Standard Edition YT8300 split dual-use coating thickness gauge
Characteristic	YT series coating thickness tester is made by 3NH company. It is a domestic coating thickness tester with independent intellectual property rights. It can quickly and accurately detect the coating thickness on metal substrate. The instrument fully conforms to ISO 2178, ISO 2360, GB/t 4956, GB/t 4957, ASTM B499 and other standards of magnetic and Eddy current testing principles. It is widely used in surface engineering testing fields such as manufacturing, metal processing, chemical industry, and so on, because of its high precision, large measuring range, multi-calibration mode, multi-measurement mode, convenient positioning and powerful function, is The coating surface treatment profession basic equipment. The Fe-based probe can detect the thickness of non-magnetic coatings on various magnetic substrates (such as steel) , such as paint, powder, porcelain, chromium, copper, zinc, etc. . NFe based probes detect the thickness of all insulating coatings, such as paint, powder, porcelain, etc. , applied to non-magnetic metal substrates such as aluminum, copper, brass, stainless steel, etc. .
Standard	ASTM B499,ASTM D1400，ASTM D709; ISO 2178,ISO 2360，ISO 2808; GB/T 4956,JB/T 8393
Matrix	Fe/NFe
Probe type	split dual-use
Resolution	0.1μm
Measurement range	0~3000μm
Measurement accuracy	zero calibration:±(3%H+1)μm； Two point calibration:±(1~3%H+1.5)μm； note: H is the sample thickness
Display screen	IPS Full color screen, 1.14inch
Interface	Type C USB;Bluetooth 5.0；Button
Stored data	3,500, massive storage via mobile APP
Battery capacity	Lithium-ion battery, fully charged, one-time continuous test 10000
Measurement mode	Basic Model, quality control model, continuous model, statistical model
Minimum measurement size	Magnetism：10×10mm； Non-magnetic：10×10mm
Minimum measurement thickness	Magnetism：0.2mm； Non-magnetic：0.05mm
Minimum curvature	convex radius 5mm; concave radius 10mm
Unit	μm/mil
Size	102×50×20mm(Probe headØ18x69)
Weight	80g
Working temperature	0~40ºC(10~90%RH without condensation)
Storage temperature	-10~50ºC
Software Support	WeChat applet,HarmonyOS,Windows,Android,IOS

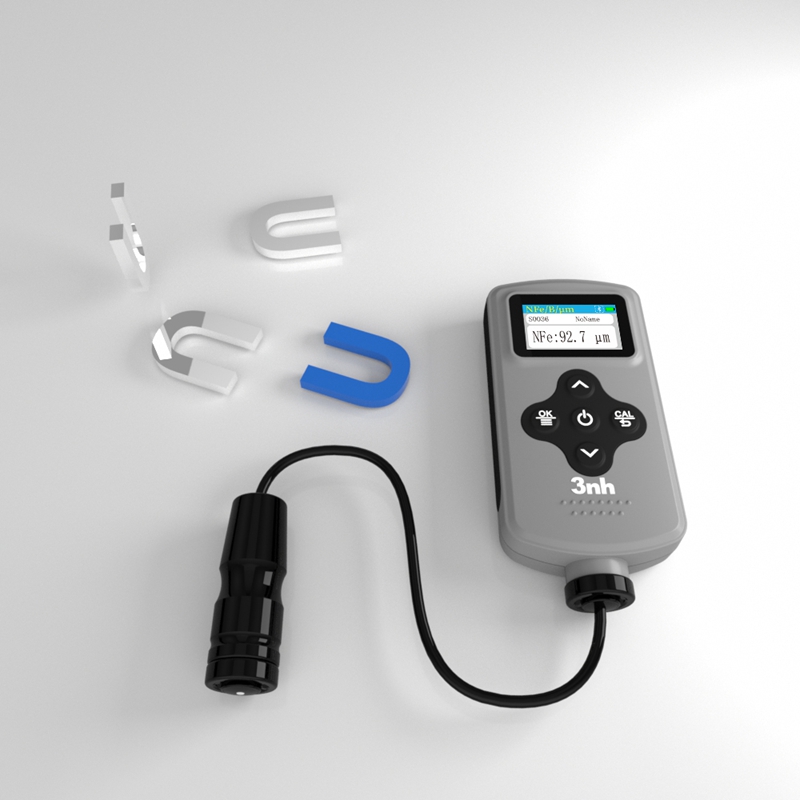

Standard accessories	2 base (Aluminium Matrix and Iron Matrix), wrist strap,，Wipe cloth, USB cable, positioning film, calibration film
Optional accessories	Printer，5V-2A Power adapter
Note：	Calibration film a set of 5(slightly different thickness) , technical parameters only for reference, to the actual sales of products shall prevail
