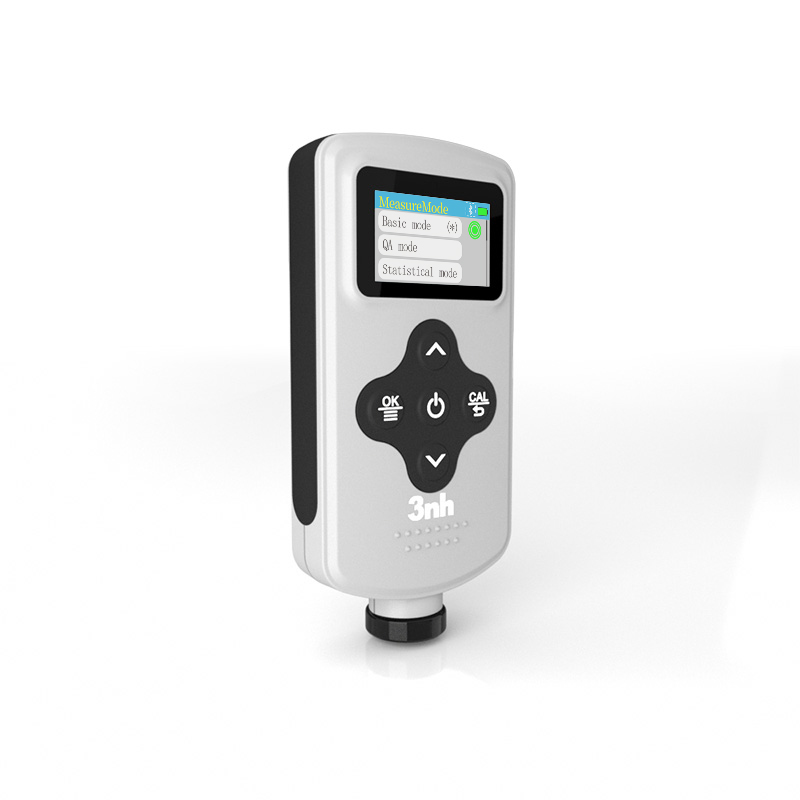

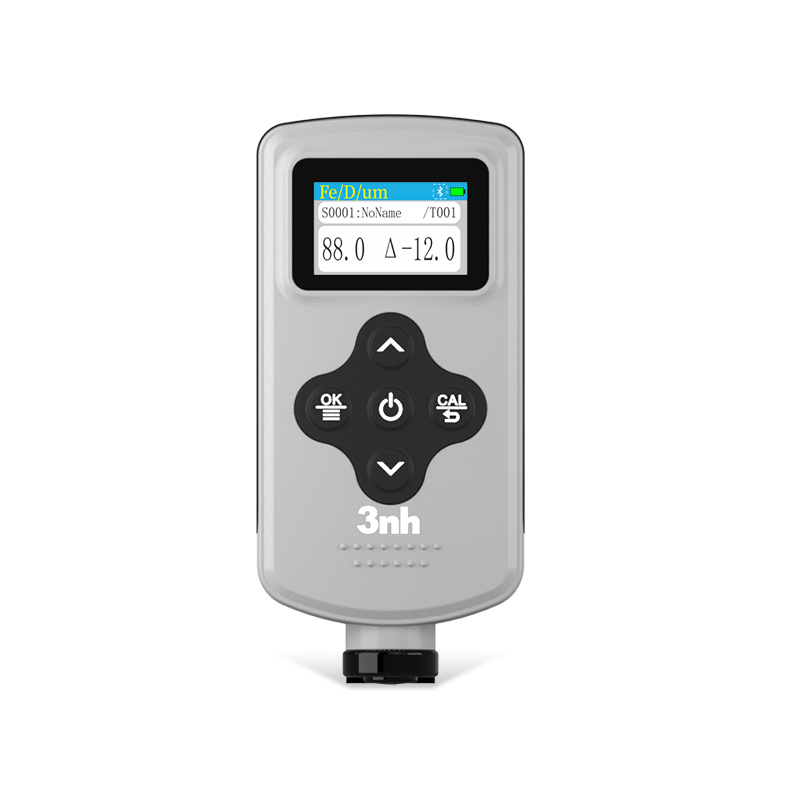

Standard version YT6300 for Integrated dual-use coating thickness gauge

884
Standard version YT6300 for Integrated dual-use coating thickness gauge
Standard version YT6300 for Integrated dual-use coating thickness gauge
Standard version YT6300 for Integrated dual-use coating thickness gauge
Standard version YT6300 for Integrated dual-use coating thickness gauge
Standard version YT6300 for Integrated dual-use coating thickness gauge
Standard version YT6300 for Integrated dual-use coating thickness gauge
Standard version YT6300 for Integrated dual-use coating thickness gauge
Standard version YT6300 for Integrated dual-use coating thickness gauge

Standard version YT6300 for Integrated dual-use coating thickness gauge

884
2024-09-11
Introduction:

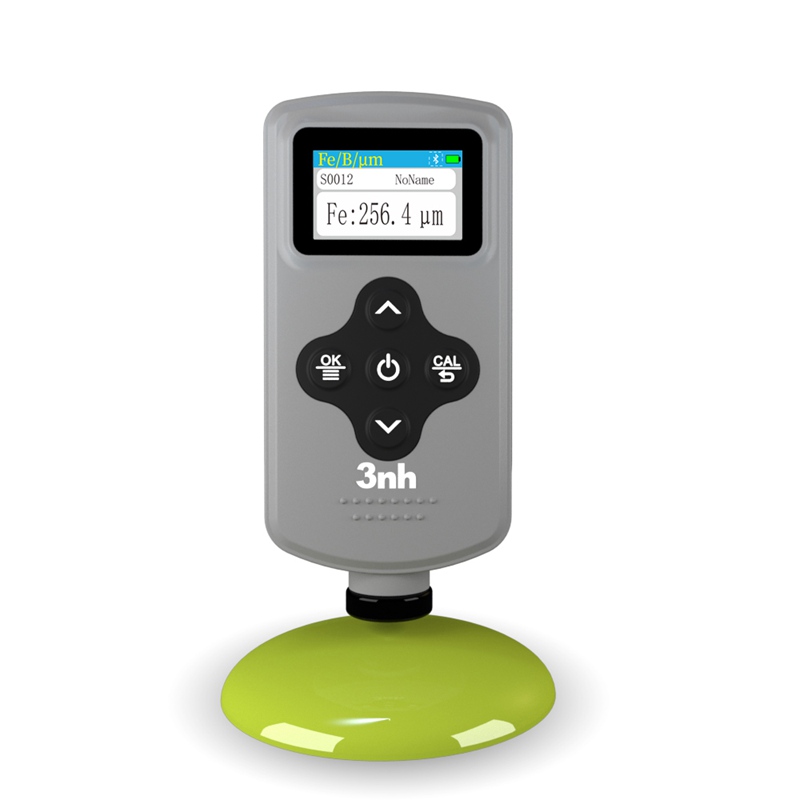

YT6300 is a standard integrated integrated dual-purpose coating thickness gauge made by 3nh Company. It is a domestic coating thickness gauge with independent intellectual property right. It can quickly and accurately detect the coating thickness on metal substrate. YT6300 coating thickness measuring instrument fully conforms to ISO 2178, ISO 2360, GB/t 4956, GB/t 4957, ASTM B499 and other standards of magnetic method and Eddy current method testing principle.

Standard version YT6300 integrated dual-purpose coating thickness gauge has the advantages of accurate measurement, large measuring range, multi-calibration mode, multi-measurement mode, convenient positioning and powerful function, widely used in manufacturing, metal processing, chemical industry and other surface engineering testing fields, coating surface treatment industry is the basic equipment.


The Fe-based probe can detect the thickness of non-magnetic coatings on various magnetic substrates (such as steel) , such as paint, powder, porcelain, chromium, copper, zinc, etc..

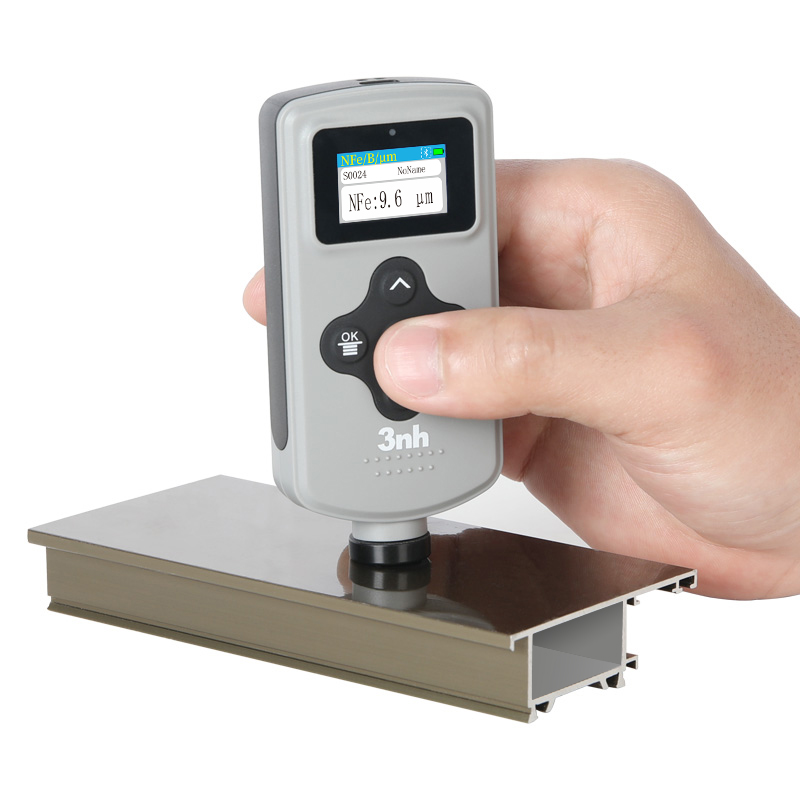

NFe based probes detect the thickness of all insulating coatings, such as paint, powder, porcelain, etc. , applied to non-magnetic metal substrates such as aluminum, copper, brass, stainless steel, etc. .





Characteristics of standard Version YT6300



1、Large range3000μm

Maximum measurement thickness 3,000 μm

Large range3000μm

2. Multiple ways to locate

 Standard multi-positioning plate, in large arc positioning, small arc positioning, plane positioning has more advantages, more accurate measurement.

Multiple ways to locate

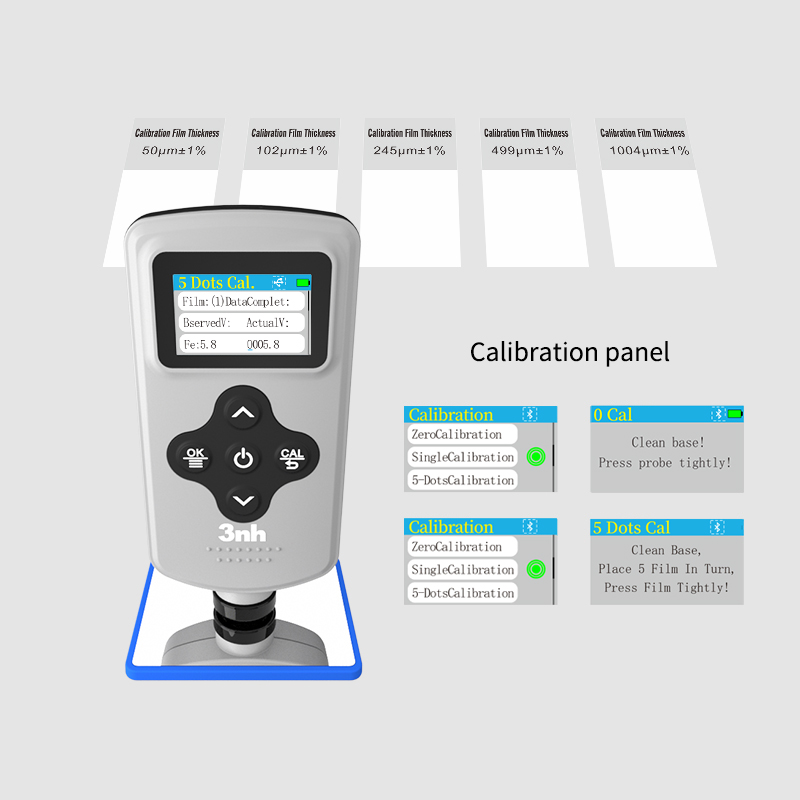

3. Support Zero Point, single point, five points

Support a variety of calibration methods, testing more convenient, to meet the needs of higher test accuracy

Support Zero Point, single point, five points

4. IPS pure color screen, smooth operation, large storage capacity

 IPS pure color screen, smooth operation, large storage capacity

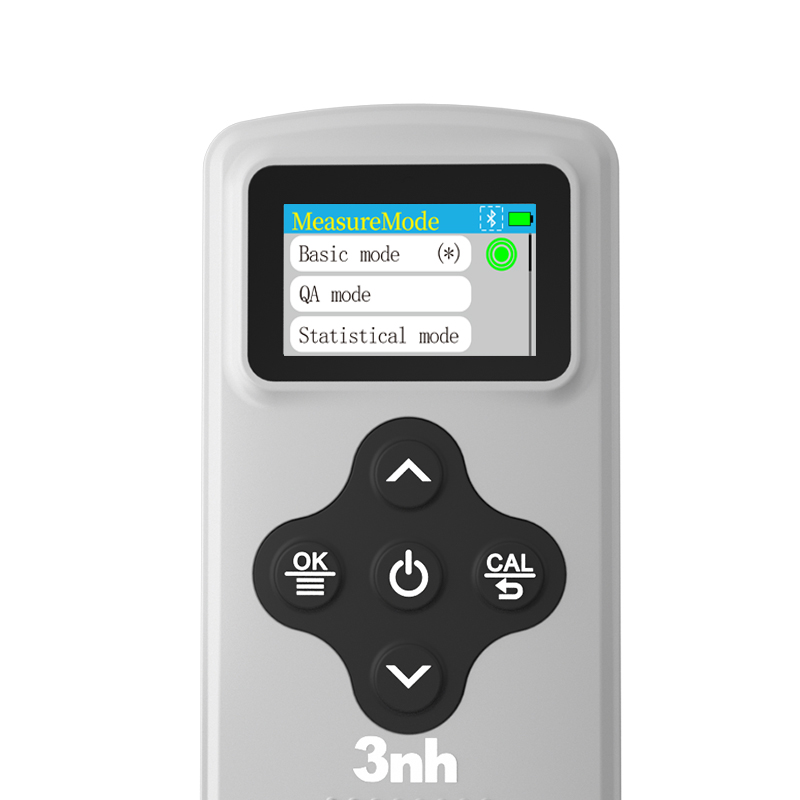

5.Measurement mode rich

Coating thickness tester YT6300 has basic mode, quality control mode, continuous mode, statistical mode for choice, to adapt to more test scenarios

Measurement mode rich

6.Non-destructive testing, automatic identification of substrate type coating thickness Tester

YT6300 can automatically identify magnetic, non-magnetic substrate, non-destructive testing does not harm samples, enhance the detection speed

Non-destructive testing, automatic identification of substrate type coating thickness Tester

7.The radius of convex plane and concave plane

Precisely measured at 5mm and 10mm respectively

The radius of convex plane and concave plane

8.High sensitive probe

Independently developed high sensitive probe response speed, testing more accurate

High sensitive probe

9.Support Bluetooth, more mobile APP extensions

Can be instant through Bluetooth measurement data transfer to the hands of the APP, the corresponding data editing and processing, output test report

Support Bluetooth, more mobile APP extensions









Technical parameters of Standard Edition YT6300 integrated dual-purpose coating thickness gauge



Model YT6300
Product Name Standard Edition YT6300 for integrated dual-purpose coating thickness gauge

Characteristic
YT series coating thickness tester is made by 3NH company. It is a domestic coating thickness tester with independent intellectual property rights. It can quickly and accurately detect the coating thickness on metal substrate. The instrument fully conforms to ISO 2178, ISO 2360, GB/t 4956, GB/t 4957, ASTM B499 and other standards of magnetic and Eddy current testing principles.
It is widely used in surface engineering testing fields such as manufacturing, metal processing, chemical industry, and so on, because of its high precision, large measuring range, multi-calibration mode, multi-measurement mode, convenient positioning and powerful function, is The coating surface treatment profession basic equipment.
The Fe-based probe can detect the thickness of non-magnetic coatings on various magnetic substrates (such as steel) , such as paint, powder, porcelain, chromium, copper, zinc, etc. .
NFe based probes detect the thickness of all insulating coatings, such as paint, powder, porcelain, etc. , applied to non-magnetic metal substrates such as aluminum, copper, brass, stainless steel, etc. .
Standard ASTM B499,ASTM D1400,ASTM D709;
ISO 2178,ISO 2360,ISO 2808;
GB/T 4956,JB/T 8393
Matrix Fe/NFe
Probe type Integrated
Positioning structure Multiple localizer
Resolution 0.1μm
Measurement range 0~3000μm
Measurement accuracy zero calibration:±(3%H+1)μm;
Two point calibration:±(1~3%H+1.5)μm;
note: H is the sample thickness
Display screen IPS Full color screen, 1.14inch
Interface Type C USB;Bluetooth 5.0;Button
Stored data 2,000, massive storage via mobile APP
Battery capacity Lithium-ion battery, fully charged, one-time continuous test 10000
Measurement mode Basic Model, quality control model, continuous model, statistical model
Minimum measurement size Magnetism:10×10mm;
Non-magnetic:10×10mm
Minimum measurement thickness Magnetism:0.2mm;
Non-magnetic:0.05mm
Minimum curvature convex radius 5mm; concave radius 10mm
Unit μm/mil
Size 107×50×20mm
Weight 65g
Working temperature 0~40ºC(10~90%RH without condensation)
Storage temperature  -10~50ºC
Software Support WeChat applet,HarmonyOS,Windows,Android,IOS
Standard accessories 2 base (Aluminium Matrix and Iron Matrix), wrist strap,,Wipe cloth, USB cable, positioning film, calibration film
Optional accessories Printer,5V-2A Power adapter
Note: Calibration film a set of 5(slightly different thickness) , technical parameters only for reference, to the actual sales of products shall prevail
