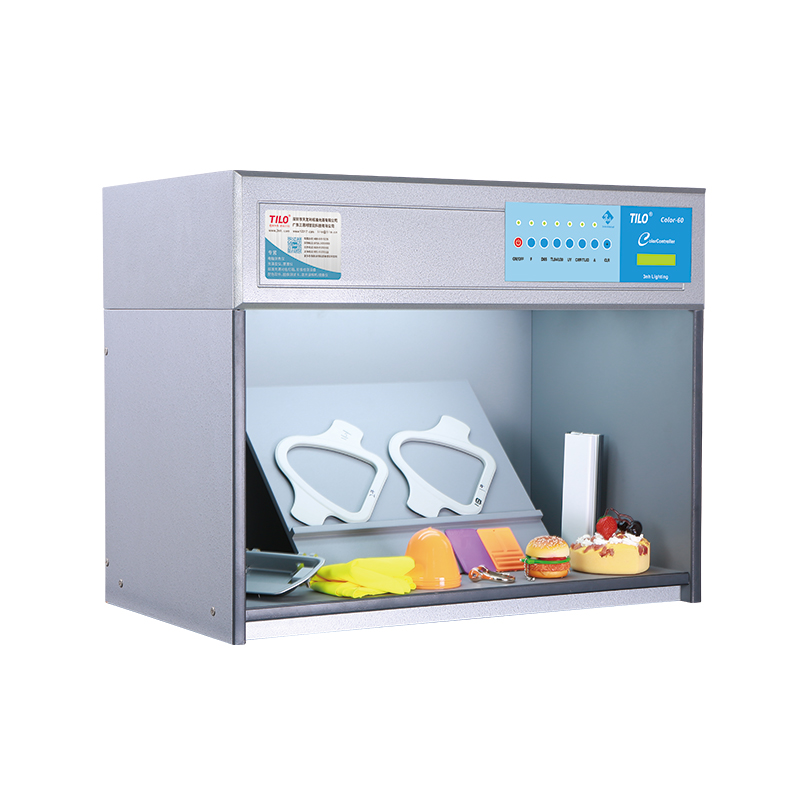

color light box parameters:



Configuration : D65/TL84/CWF/F/UV/A/TL83 A in Total Seven Light Sources

Weight :38Kg

Size(L*W*H) : 710x530x570 mm

Optional Accessory : 45 degree stand



Item	Name	Model	D65	TL84	F	UV	CWF	TL83	A		Power Supply
10108	Standard light source Color light box	Color-60 7 light sources(220V)	2pcs	2pcs	4pcs	1pcs	2pcs	2pcs	2pcs		220V 50Hz
10108	Standard light source Color light box	Color-60 7 light sources(110V)	2pcs	2pcs	4pcs	1pcs	2pcs	2pcs	2pcs		110V 60Hz



Color-60 Color light box Features:



1.  Display usage time, name, and number of switches for each source
2.  Automatic switching of light source with metamerism
3.  No warm-up, no flashing, fast and reliable evaluation of colors
4.  Low energy consumption, no heat dissipation, high luminous efficiency
5.  Configure a more complete standard light source for English and American standards
6.  Contains A light source in American Standard
7.  The name of the light source can be changed, and it is more convenient to increase the light source.
8.  TILO high standard international brand.





Light Source	Color viewing booths application	Color temperature(k)	Power(W)
D65	International standard Artificial Daylight	6500	18
TL84	Applied to stores in Europe, Japan and China	4000	18
CWF	(Cool White Fluorescent) American Standard	4150	18
F	"Sun-setting Light Yellow" incandescent light source(imitation of sunset)	2700	40
UV	Viewing under ultraviolet light to detect and evaluate optical brighteners or fluorescent pigments	Wave length:365nm	20
TL83	Warm White Fluorescent American Standard	3000	18
A	American shopwindow spotlight	2856	60
