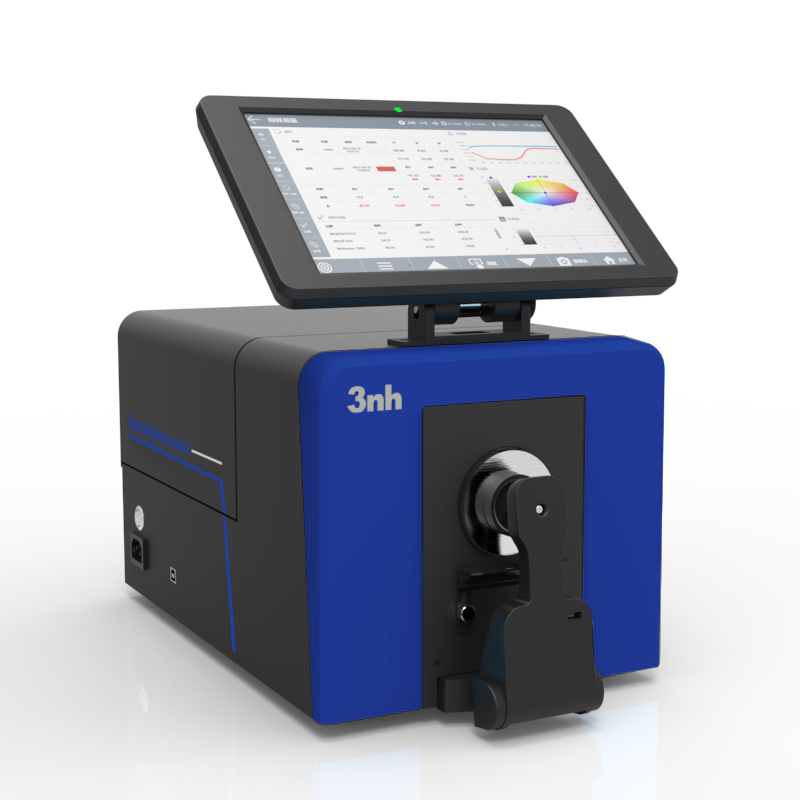

TS8500 is a benchtop grating spectrophotometer which is developed by 3nh independently with core technology. It uses a dual-array CMOS image sensor to have high sensitivity and a wider spectral response range, which makes the test more accurate. With a 10.5-inch independent rotating screen, it is convenient and easy to use. TS8500 also supports Xenon pulse and LED two Light Sources. The repeatability of ΔE*ab is within 0.015, and inter-instrument error is within 0.2, and the measurement performance is super stable and accurate.

Features:

1. International common d/8, SCI/SCE , SCI+SCE Synchronous measurement

TS8500 spectrophotometer adopts D/8 (diffused illumination, 8-degree viewing angle) which is widely applicable in the world, and SCI/SCE (specular component included/specular component excluded) Synthesis technology, supporting SCI+SCE simultaneous rapid measurement.

2. Easy to operate with big display Pad, faster and more accurate measurement

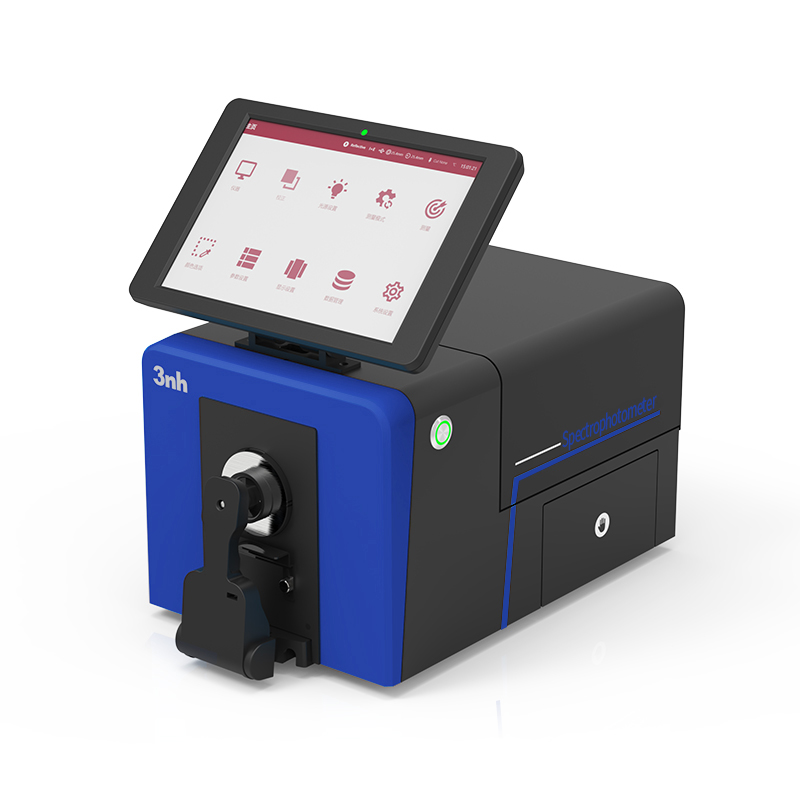

With 10.5-inch independent rotating display pad, it makes the response faster, and the operation is more comfortable and convenient.

3. Double Array CMOS Image Sensor

It has high sensitivity and wide spectral response range, which can achieve high -precision and repeatability measurement.

4. Rich measurement index, multiple observation light sources

Support 40+measurement indexes, and light sources D65, A, C, D50, D55, D75, F1, F2, F3,F4,F5,F6,F7,F8,F9,F10,F11,F12,CWF,DLF,TL83,TL84,TPL5,U30B,U35,NBF,ID50,ID65,LED-B1,LED-B2,LED-B3,LED-B4,LED-B5,LED-BH1,LED-RGB1,LED-V1,LED-V2,LED-C2,LED-C3,LED-C5,and other customized light sources.(41 light sources in total, parts will be achieve via software in PC),multiple observation light sources, meet different measuring requirement.

5. Automatic measuring aperture distinguish

Freely switchable between 4 measuring apertures: φ25.4mm/15mm/8mm/4mm. Users also can customize apertures.

6. Convenient measurement, widely application

Side measurement, upward measurement, and downward measurement (using accessories) and other gestures are placed and measured, open -type transmitted warehouses, adapting to more samples.

7. Automatic temperature and humidity compensation function, make the measurement data more accurate



8. The camera located, clearly confirm the measured area

TS8500 has a built -in camera to set the location positioning. Through the real -time scene of the camera, it can accurately determine whether the measured part of the object is the target center, which improves the measurement efficiency and accuracy.

9. Adopt combination full spectrum LED light source and UV light source

Wavelength range 360nm-780nm,combined LED Light. Including UV,400nm cut-off light source, 420nm Cut-off light source,360-780nm Xenon Lamp.



10. Color management software

With SQCX quality management software, TS8500 spectrophotometer is suitable for quality monitoring and color data management in various industries. Data the user's color management, compare color differences, generate test reports, provide multiple color space measurement data, and customize the customer's color management.

TS8500 Benchtop Grating Spectrophotometer Specification



Model	TS8500 (LED+Pulsed Xenon)
Optical Geometry	Reflect: D/8(diffused illumination, 8-degree viewing angle) ;
	SCI (specular component included)/SCE (specular component excluded) ; Include UV / excluded UV light source ;
	Transmittance: D/0 (diffuse illumination: 0° viewing) ;
	SCI (specular component included)/SCE (specular component excluded) ; Include UV / excluded UV light source ;
	HAZE (ASTM D1003);
	Standards meet: CIE No.15, GB/T 3978,GB 2893,GB/T 18833, ISO7724/1, ASTM E1164, DIN5033 Teil7,JIS Z8722 under condition C
Characteristic	1. It is used for accurate analysis and transmission of laboratory color. Apply in paints, inks, textiles, garments, printing and dyeing, printing etc industries for color transfer and quality control.
	2. 10.5 inch rotatable display pad, 128G storage, camera locating
	3. Instrument can be measured on the side, upward measurement, and the downward measurement (use accessories) and other gestures.
	4. Open transmission warehouse, available thickness of 54mm transmitted samples.
	5. Automatic temperature and humidity compensation function.
	6. Built-in full spectral high life LED light source and Xenon lighting sources, testing fluorescent samples have better recognition.
Integrating Sphere Size	Φ154mm
Light Source Device	360nm–780nm Wavelength range ,combined LED Light. Including UV, 400nm cut-off light source, 420nmCut-off light source,360~780nm Xenon Lamp.
Spectrophotometric Mode	Concave Grating
Sensor	256 Image Element Double Array CMOS Image Sensor
Wavelength Range	360~780nm
Wavelength Interval	10nm
Semiband Width	5nm
Measured Reflectance Range	0~200%
Reflectivity Resolution	0.01
Measuring Aperture	Reflective：
	XLAV Φ25.4mm/Φ30mm, LAVΦ15mm/Φ18mm , MAVΦ8mm/Φ10mm, SAVΦ4mm/Φ6mm
	Transmissive:
	Φ25.4mm(No limit on sample height and width, but thickness≤54mm)
	Remark:
	1. Automatic identification of aperture switch
	2. Customized Configuration caliber and lens position
Specular Component	Reflectance: SCI&SCE / Transmittance: SCI&SCE
Color Space	CIE LAB,XYZ,Yxy,LCh,CIE LUV,Musell,s-RGB,HunterLab,βxy,DIN Lab99
Color Difference Formula	ΔE*ab,ΔE*uv,ΔE*94,ΔE*cmc(2:1),ΔE*cmc(1:1),ΔE*00, DINΔE99,ΔE(Hunter) ，ΔE*CH，555 Index
Other Colorimetric Index	WI(ASTM E313，CIE/ISO,AATCC,Hunter，Taube,Berger Stensby)
	YI(ASTM D1925，ASTM 313),ISO brightness,R457
	MI (Metamerism Index),
	Staining Fastness, Color Fastness, Color Strength, Opacity,
	APHA/Hazen/Pt-Co Index，Gardner Index
	8° Gloss,555 Index, Haze,Transmission(ASTM D1003), Saybolt index, ASTM D1500 Color code,carbon(My,dM), Color density CMYK(A,T,E,M), Tint,Color density(part function achieved via software in PC)
Observer Angle	2°/10°
Illuminant	D65,A,C,D50,D55,D75,F1,F2,F3,F4,F5,F6,F7,F8,F9,F10,F11,F12,CWF,DLF,TL83,TL84,TPL5,U30,B,U35,NBF
	ID50,ID65,LED-B1,LED-B2,LED-B3,LED-B4,LED-B5,LED-BH1,LED-RGB1,LED-V1,LED-V2,LED-C2,LED-C3,LED-C5, customized light source(41 light sources in total,part achieved via software in PC)
Displayed Data	Spectrogram/Values, Samples Chromaticity Values, Color Difference Values/Graph, PASS/FAIL Result, Color Offset, Color assessment, haze, liquid chromaticity
Measuring Time	2.0s（Measure SCI & SCE meantime about 4s )
Repeatability	Reflectance chromaticity value:Φ25.4mm/SCI, Standard deviation within ΔE*ab 0.015 ( When a white calibration plate is measured 30 times at 5 second intervals after white calibration);
	spectrum reflectance /transmission：≤0.1%
Inter-instrument Error	Φ25.4mm/SCI, Within ΔE*ab 0.2 (Average for 12 BCRA Series II color tiles)
Dimension	L*W*H=440x248x283mm
Weight	Approx. 13.5kg
Power	AC 24V, 3A Power adapter power supply
Illuminant Life Span	5 years, more than 3 million times measurements
Display	10.5-inch rotatable display pad
Data Port	USB & Bluetooth
Data Storage	128G storage，above 100000pcs
Language	Simplified Chinese, Traditional Chinese, English,(Optional Customized German,Russian, French ,Spanish ,Japanese, Thai, Korean, Polish, Portuguese)
Operating Environment	0~40℃（32~104°F）
Storage Environment	-20~50℃（-4~122°F）
Standard Accessory	Power Adapter, User Guide, U Disk(PC Software), USB cable, Standard Calibration Board, Black Calibration Cavity, Transmission black baffle, Sample holder, 25.4 caliber, 15 caliber, 8 caliber, 4 caliber,Transmissive Test Component, cuvette, 10.5-inch screen
Optional Accessory	Micro Aperture(4mm) transmission test clamp component, Instrument inversion components,culture dish,Film fixture
Notes	Test reports can be printed through a network printer connected to a PC or display pad; The specifications are subject to change without notice.
