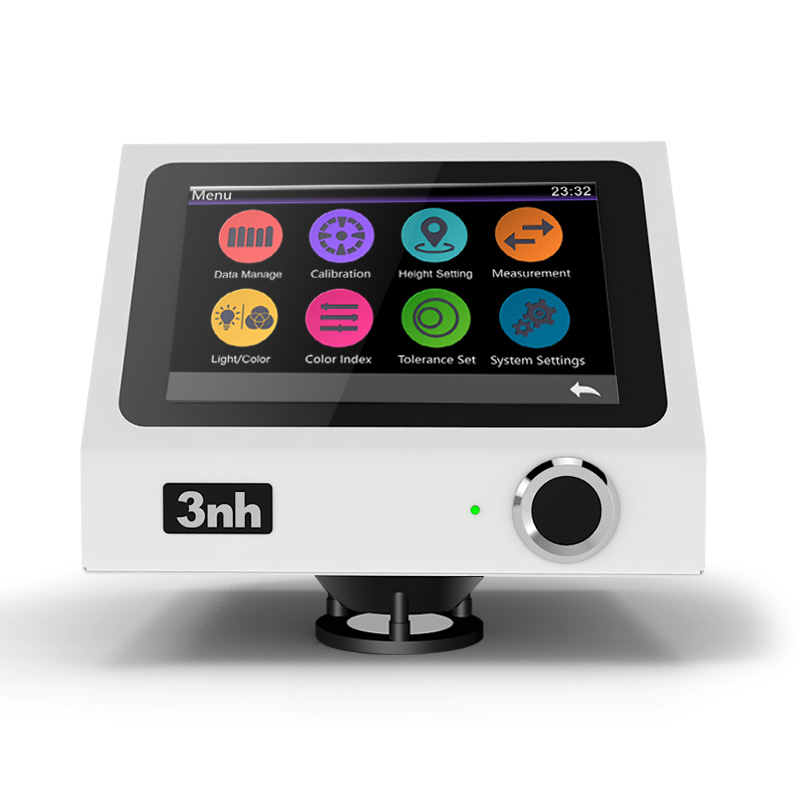

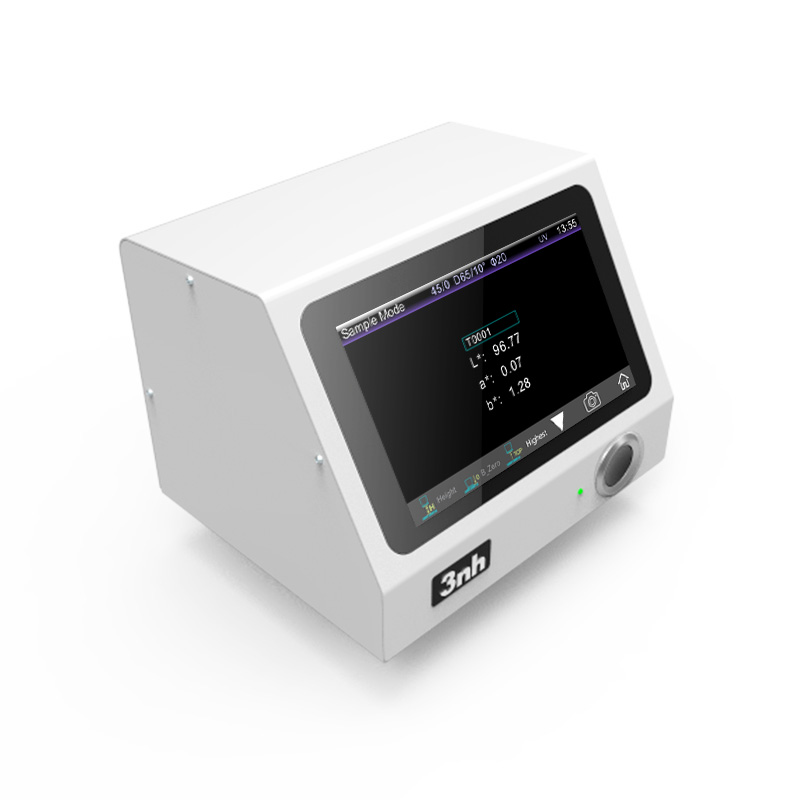

The YL4668 spectrophotometer is a color measuring instrument that adopts D/8 (diffuse illumination, 8°direction reception, SCI includes specular reflection light) standard color measurement instrument, non-contact test between test probe and tested sample, to achieve liquid and sauce , powder and other non-contact precision color measurement. The simple probe design allows this product to be placed anywhere on the automated production line for precise color measurement and color quality control. It is widely used in cosmetics, fruits and vegetables, food hygiene, plastic electronics, paint and ink, printing, ceramics and other industries. It can be used for fluorescent sample measurement. Its unique innovative design can not only provide non-contact measurement solutions directly from the production line, but also ensure stable and high-precision measurement results.


Features of non-contact spectrophotometer

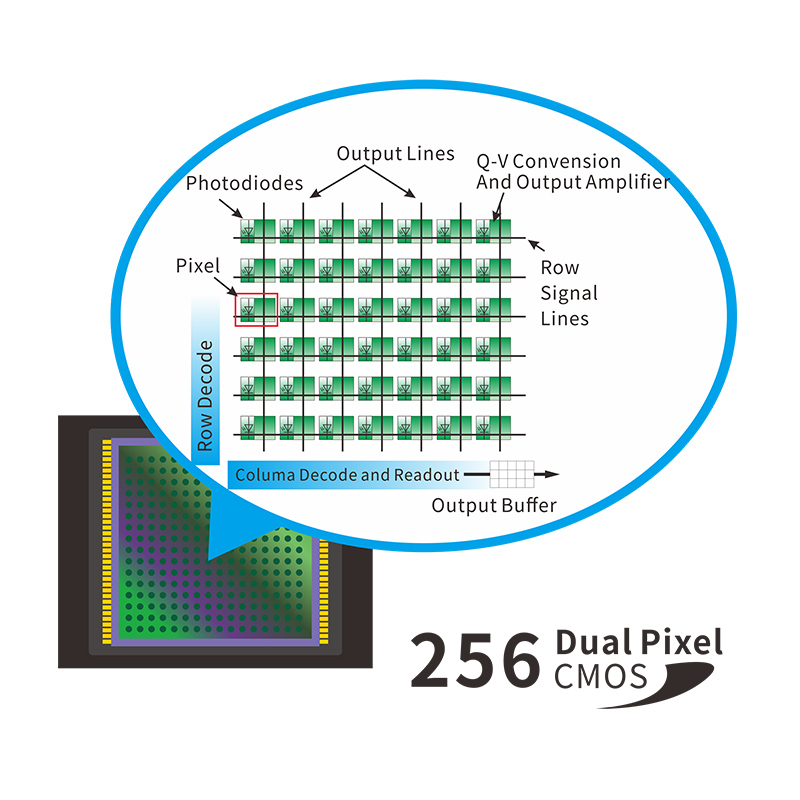

1. 256-pixel dual-array CMOS image sensor

Higher optical resolution ensures the measurement speed, accuracy, stability and consistency of the instrument, mastering the core technology, and achieving complete compatibility on the same platform with international standards.



2. Using full-spectrum LED light source

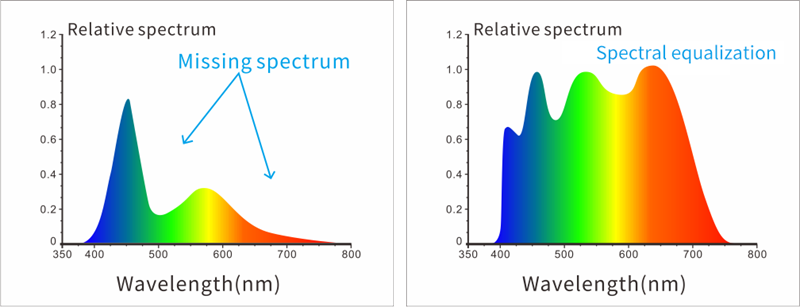

The full-spectrum LED light source ensures sufficient spectrum distribution in the visible light range, avoids the lack of LED spectra in specific bands, and ensures the accuracy of the instrument's measurement results and low-cost maintenance.




3. Concave grating spectroscopy technology

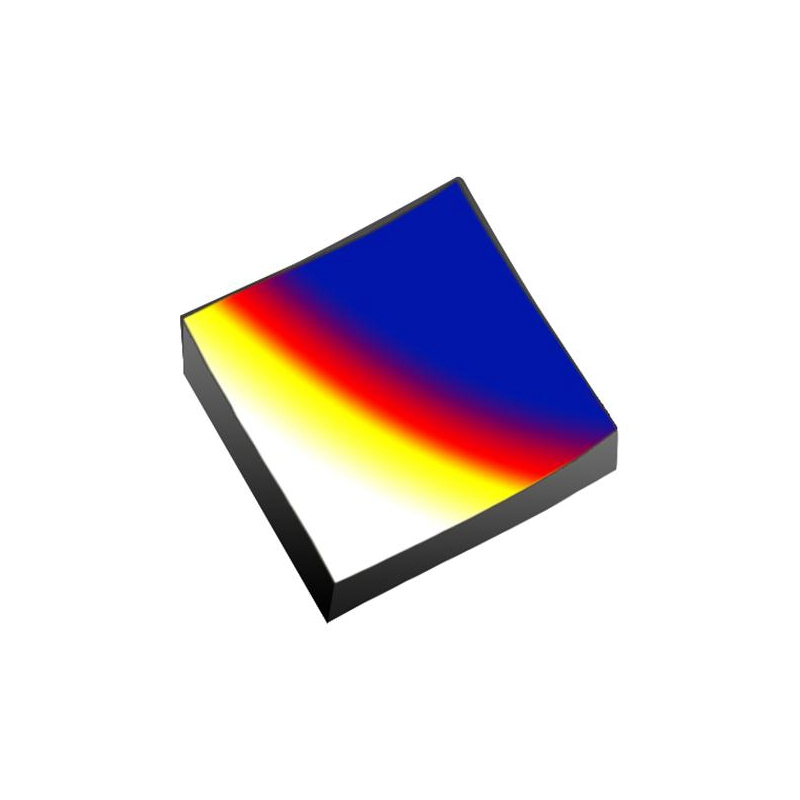

Using concave grating spectroscopy technology, it has higher resolution and makes color measurement more accurate.

4. Higher quality

Using industrial-grade real-time processing MCU, supporting Bluetooth 5.0 transmission is more stable and reliable.

5. Multi-color measurement space and observation light source

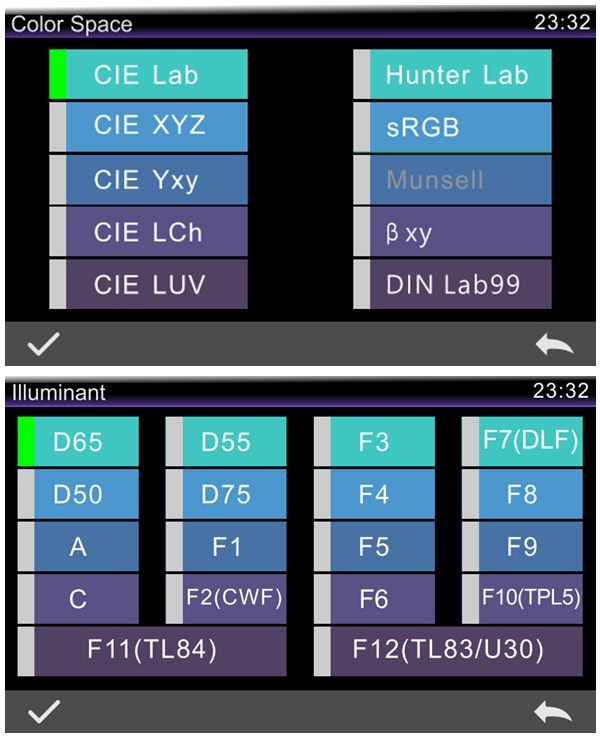

Provide CIE LAB, XYZ, Yxy, LCh, CIE LUV, Musell, s-RGB, HunterLab, βxy, DIN Lab99 color space, and D65, A, C, D50, D55, D75, F1, F2 (CWF), F3, F4, F5, F6, F7 (DLF), F8, F9, F10 (TPL5), F11 (TL84), F12 (TL83/U30) multiple observation light sources can meet the special measurement requirements under different measurement conditions.

6. Efficient

A complete measurement cycle only needs 200 milliseconds, and more than 400,000 samples can be measured per day.



YL4668 Non-Contact Spectrophotometer Technical Parameters

Model	YL4668
Optical Geometry	D/8 (diffuse illumination, 8° direction reception, SCI includes specular reflection light); Comply with standard CIE No.15, GB/T 3978, GB 2893, GB/T 18833, ISO7724-1, ASTM E1164, DIN5033 Teil7, GB 2893, GB/T 18833
Features	Non-contact test between test probe and tested sample, to achieve the non-contact precise color measurement of liquid, sauce, powder, etc. It is mainly used for accurate color measurement and quality control of automated production lines; the measurement time can be adjusted from 0.2 to 1.5 seconds, and the software functions can be customized (additional customization function needs to be evaluated).
Light Source	Full spectrum LED light source, UV light source
Spectrophotometric Mode	Concave Grating
Sensor	256-pixel dual-array CMOS image sensor
Wavelength Range	400~700nm, 10nm output
Measured Reflectance Range	0-200%
Measuring Aperture	Φ20mm (Φ10mm can be customized)
Non-contact distance	3.0mm (±0.2mm)
Sample height	Unlimited thickness, only test probes are used
Distance adjustment method	Fixed height according to actual sample
Measurement mode	Software customization function (additional customization function needs to be evaluated)
Locating	Camera locating
Color Space	CIE LAB,XYZ,Yxy,LCh,CIE LUV,Musell,s-RGB,HunterLab,βxy,DIN Lab99
Color Difference Formula	ΔE*ab,ΔE*94,ΔE*cmc(2:1),ΔE*cmc(1:1),ΔE*00,ΔE（Hunter），DINΔE99
Other Colorimetric Index	WI(ASTM E313，CIE/ISO,AATCC,Hunter)， YI(ASTM D1925，ASTM 313), Metamerism index MI, Staining Fastness, Color Fastness, Strength, Opacity
Observer Angle	2°/10°
Illuminant	D65,A,C,D50,D55,D75, F1,F2(CWF),F3,F4,F5, F6,F7(DLF),F8 ,F9,F10(TPL5),F11(TL84),F12(TL83/U30)

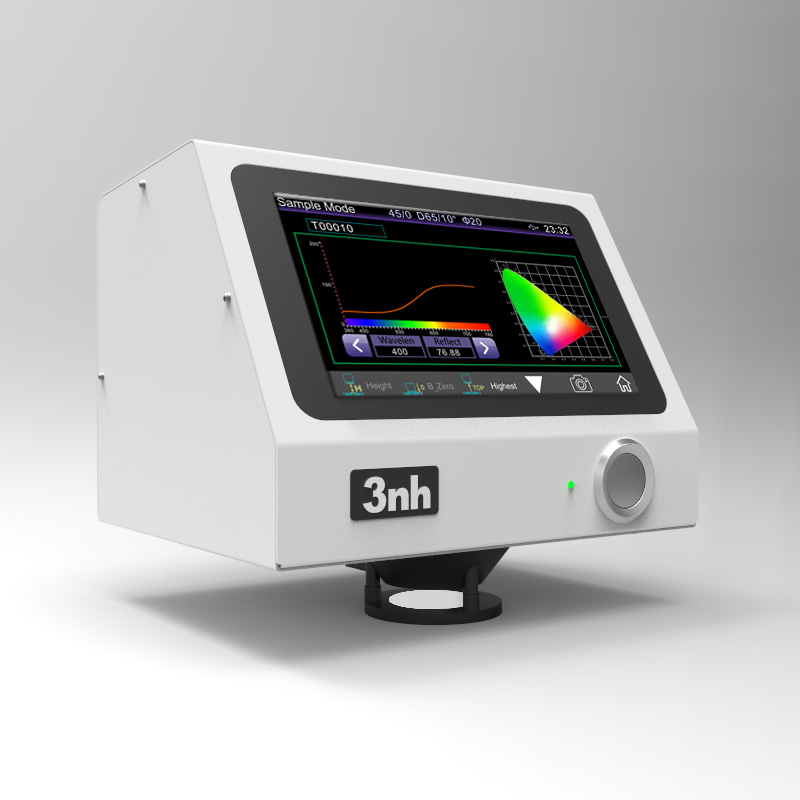

Displayed Data	Spectrogram/Values, Samples Chromaticity Values, Color Difference Values/Graph, Color simulation, pass/fail result, display tolerance can be set
Measuring Time	As fast as 0.2 seconds
Data Storage	Sample mode + quality control mode 18,000
	Continuous statistical mode 30,000, totaling no more than 48,000
Repeatability	In the optimal measurement mode (when a single measurement time is 1.5 seconds): Spectral reflectance: within 0.1% of standard deviation: Chromaticity value: ΔE*ab within 0.03(After the instrument is warmed up and calibrated, measure the average value of the whiteboard 30 times at an interval of 5s)
Inter-instrument Error	Within ΔE*ab 0.2(Measured average value of 12 tiles of BCRA series Ⅱ)
Measurement method	Single measurement, average measurement (2~99 times)
Dimension	200*200*160mm (test probe)
Weight	About 3Kg (only test probe)
Power	AC 24V, 3A Power adapter power supply
Illuminant Life Span	5 years, more than 3 million times measurements
Display	7-inch TFT color LCD, Capacitive Touch Screen
Data Port	USB, Bluetooth®5.0
Language	Simplified Chinese, Traditional Chinese, English
Operating Environment	0~40℃, 0~85%RH (no condensation), altitude: less than 2000m
Storage Environment	-20~50℃, 0~85%RH (no condensation)
Standard Accessory	Power adapter, manual, data cable, standard calibration board, black calibration box
Notes	This model is specially suitable for streamlined production lines, in-depth function customization will incur additional customization costs
