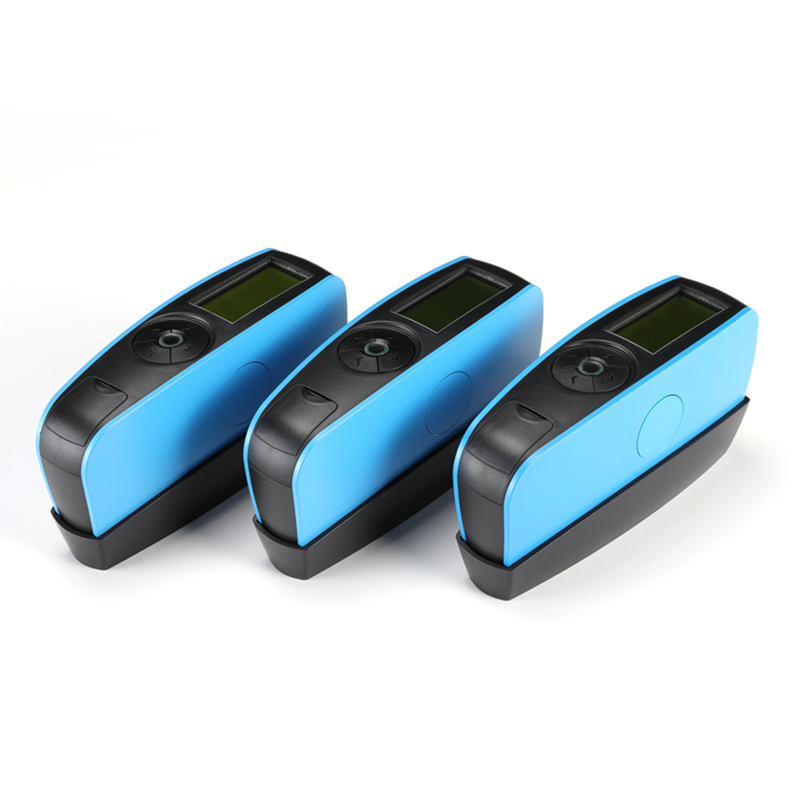

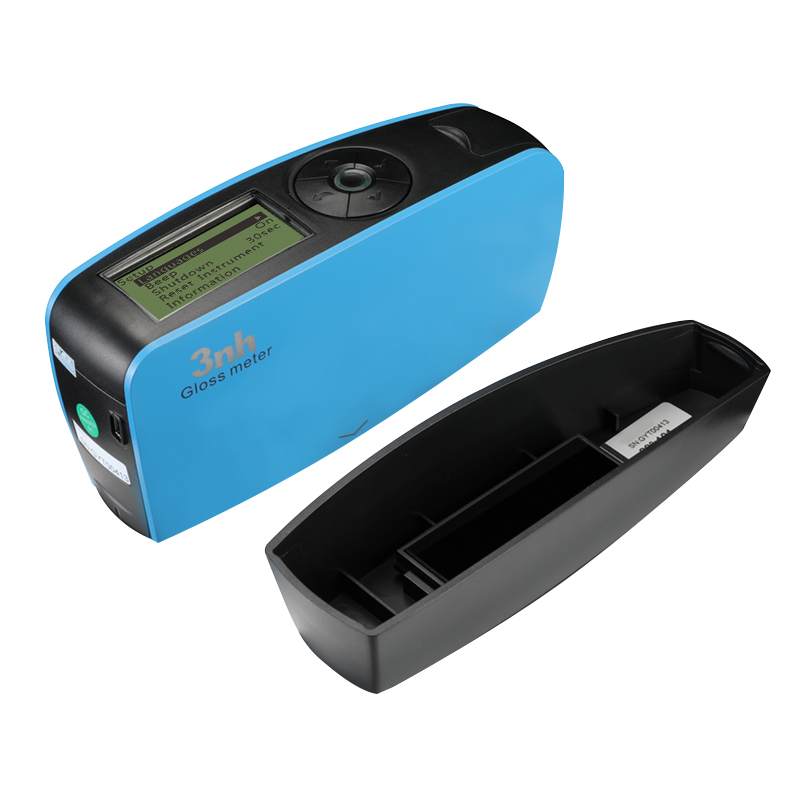

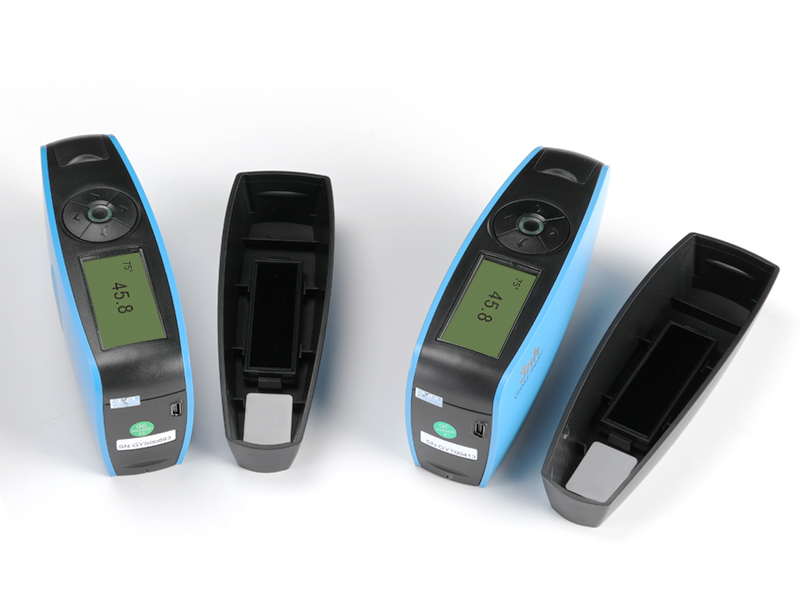

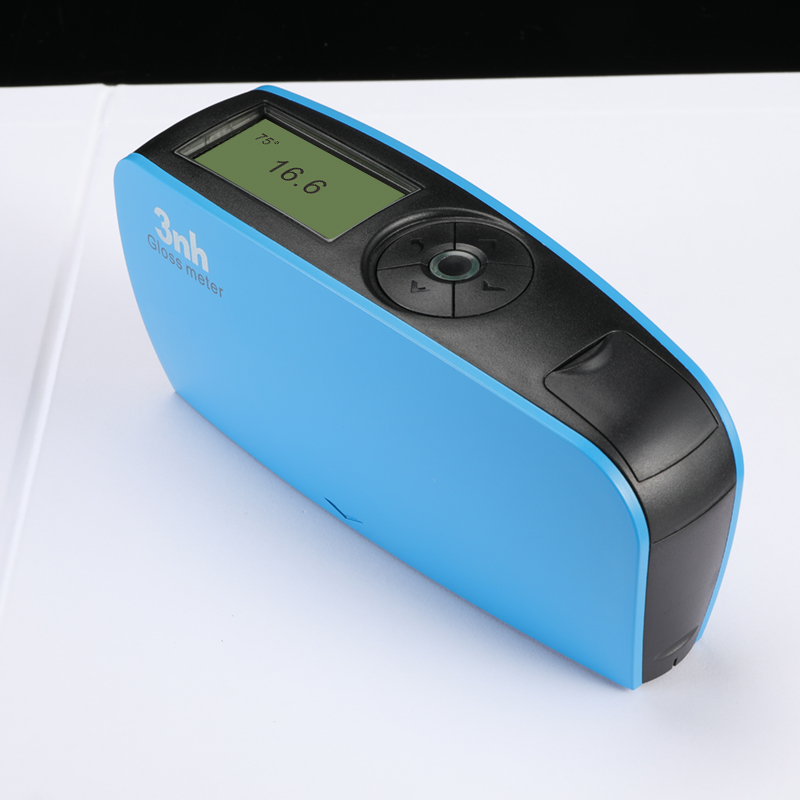

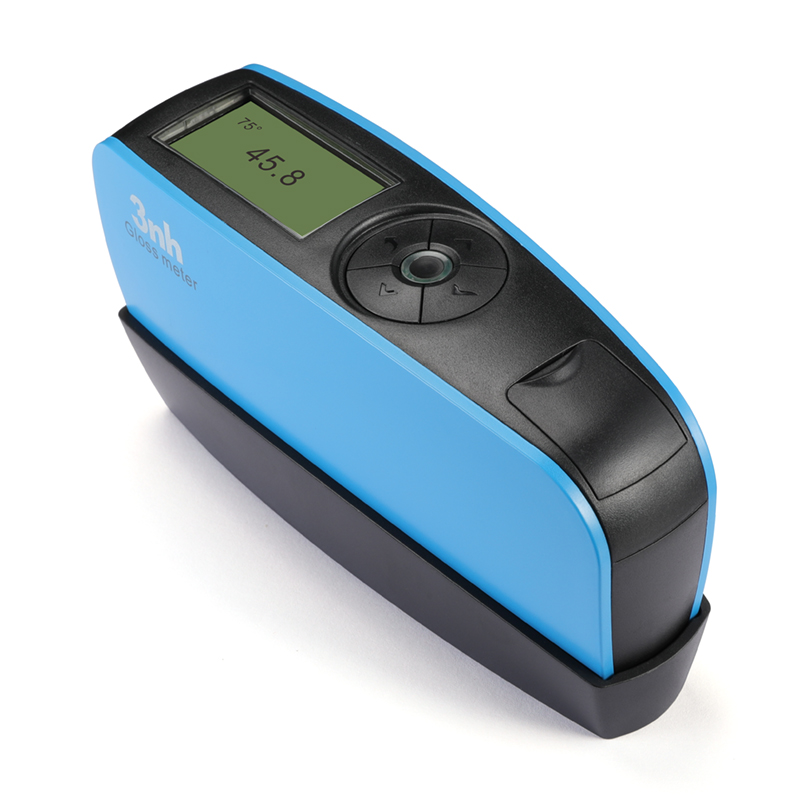

75 ° High Precision Gloss Meter YG75 is a professional instrument for measuring the gloss of an object surface. It uses the 75 ° angle measurement method to accurately measure the gloss of the product surface and is widely used in gloss measurement and quality inspection in paper, film, plastic and other industries.



75° High Precision Gloss Meter YG75 Product Features



1. Good operating experience

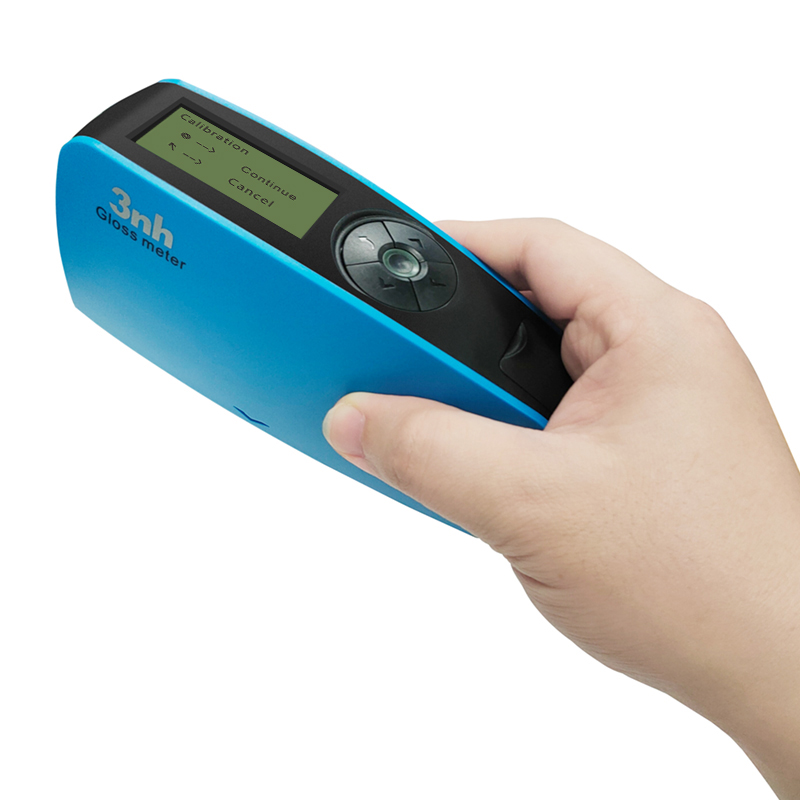

The streamlined curved surface design is more ergonomic, and it can maintain a comfortable grip even in daily or continuous work, effectively avoiding fatigue and bringing a good operating experience to users.

2. Multi-mode measurement

Supports switching between basic mode, statistical mode, continuous mode, and quality control mode to adapt to different application scenarios. The normal mode allows for immediate measurement and fast readings; the quality control mode allows for custom upper and lower limits to achieve fast incoming material testing .

3. Low power consumption

A fully charged AA alkaline battery or NiMH rechargeable battery can measure more than 10,000 times.

4. Calibration function

Supports calibration and has the function of automatically checking the calibration standard plate to ensure the accuracy and reliability of long-term measurement.

5. Lightweight and portable

Lightweight design, easy to carry, not only suitable for precise measurement in the laboratory, but also convenient for flexible application in the production site.

6. Excellent inter-instrument difference and repeatability

The repeatability is very good, within the measurement range of 0-100GU, the repeatability can reach ±0.2GU, and within the measurement range of 100-150GU, the repeatability can reach ± 0.2 % GU .

7. High-precision measurement

Carefully adjusted measurement system and optical path layout ensure stable and accurate gloss measurement.

8. PC quality management software

The instrument is equipped with powerful PC data management software, which supports online measurement, printing test reports, data transmission and more functional expansion.



75° High Precision Gloss Meter YG75 Technical Parameters

Product number	YG75 75° High Precision Gloss Meter
Measuring Angles	75°
Measuring spot (mm)	75°:4x6
Measuring range	75°: 0~150GU
Graduation value	0~100GU:0.1GU; 100~150GU:1GU
characteristic	It can be used for gloss measurement and gloss data transmission in paint, ink, coating, paper printing, plastic electronics, furniture, ceramics, electroplating, hardware, marble and other industries.
Measurement Mode	Basic mode, statistical mode, continuous mode, quality control mode
measure time	0.5 seconds
Repeatability	0~100GU:±0.2GU ; 100~150GU:±0.2%GU
accuracy	Meet the requirements of JJG 696 working gloss meter
Automatic shutdown time	30~120 seconds optional
Long time calibration	Auto Identify Calibration Board and Calibrate / manual calibration
language	Simplified Chinese, English, Traditional Chinese
Storing data	35,000 (15,000 in basic mode and continuous mode, 10,000 in quality control mode, 10,000 in statistical mode)
Display	2.3 inch black and white display
size	160X52X84mm
weight	About 300g (including calibration box and batteries)
power supply	1 AA alkaline battery or NiMH rechargeable battery, can measure more than 10,000 times; or use USB port
interface	USB
PC Software	GQC6 quality management software, quality inspection report printing, more functional expansion
Operating temperature range	0~40°C (32~104°F)
Storage temperature range	-20~50°C (-4~122°F)
humidity	Less than 85% RH, no condensation
Standard accessories	USB data cable, instruction manual, GQC quality management software (download from official website or provided by after-sales), calibration board
Optional accessories	Micro printer, Bluetooth 5.0 adapter
Note	The technical parameters are for reference only, please refer to the actual products sold
