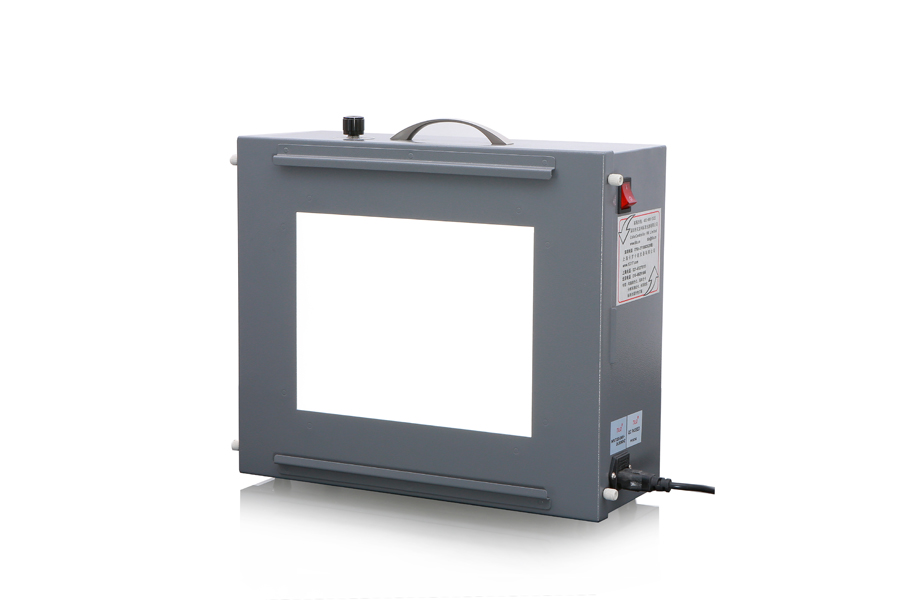

3nh Standard color viewer for camera test is to provide special lighting environment, with high illumination uniformity, light continuous adjustable, etc functions.

Model

CC5100/CC3100

Light source:

5100K(5100K±200k) *4,3100K(3100K±200k) *4

Uniformity:

>95%

Luminous Source:

100 ~ 4400cd/m2 adjustable

Illuminance:

250 ~ 10000Lux adjustable

Power supply:

AC230V 50/60HZ

Lighting method:

High Frequency lighting method 20KHz

Operating temperature:

10～40℃

Operating humidity:

Below 80%(avoid dew)

Major diameter dimension:

38.5W*34H*15Dcm

Luminance plane dimension:

25W*19Hcm
