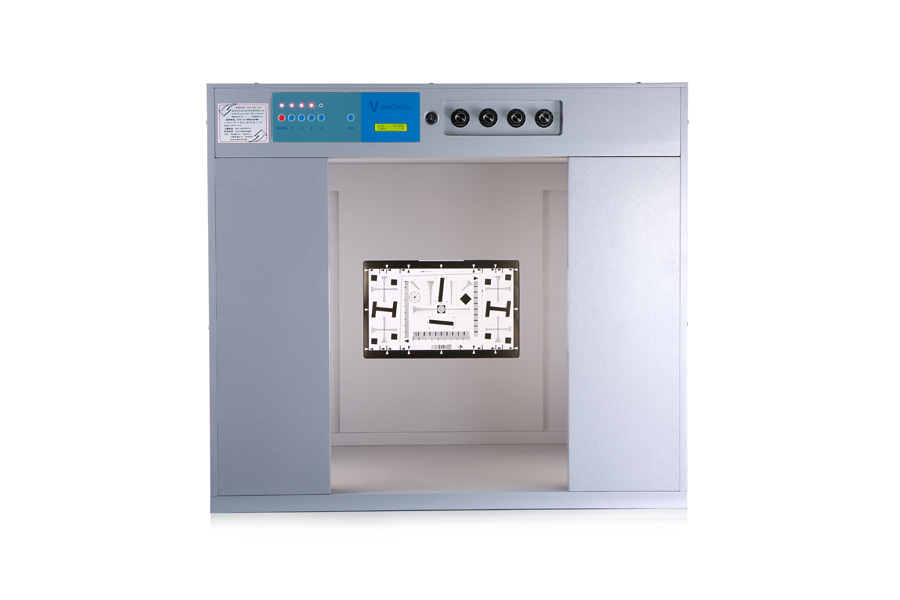

TILO VC(3) Camera Viewer Color Check Box

Camera Color Check Box provides a special lighting source for the test of your Video Camera. Its main functions are as below:

Camera Color Check Box Specifications:

1. Including D65, A, TL84, CWF light sources

2. Quick Switch among each group of light sources by using microcomputer control

3. Timing function to record the using time of each group of light sources separately.

4. All parts are professional import, international quality certification.

Camera Color Check Box Performance:

1. Daylight accredited by CIE, 6500k color temperature

2. Illumination range: 750 to 3200 lux

3. Background of the light sources is Neutral Grey.

4. Illumination adjustable from 1% to 100%, higher than 80% evenness, test distance can be adjustable.

Light Source:

Light Source	Application	Color temperature(k)	Power(W)
D65	International standard Artificial Daylight	6500	18
TL84	Applied to stores in Europe, Japan and China	4000	18
A	Shooting Light of American Window, Colorimetric reference light source	2856	75
CWF	(Cool White Fluorescent)American Standard	4150	18
